Drying cabinets

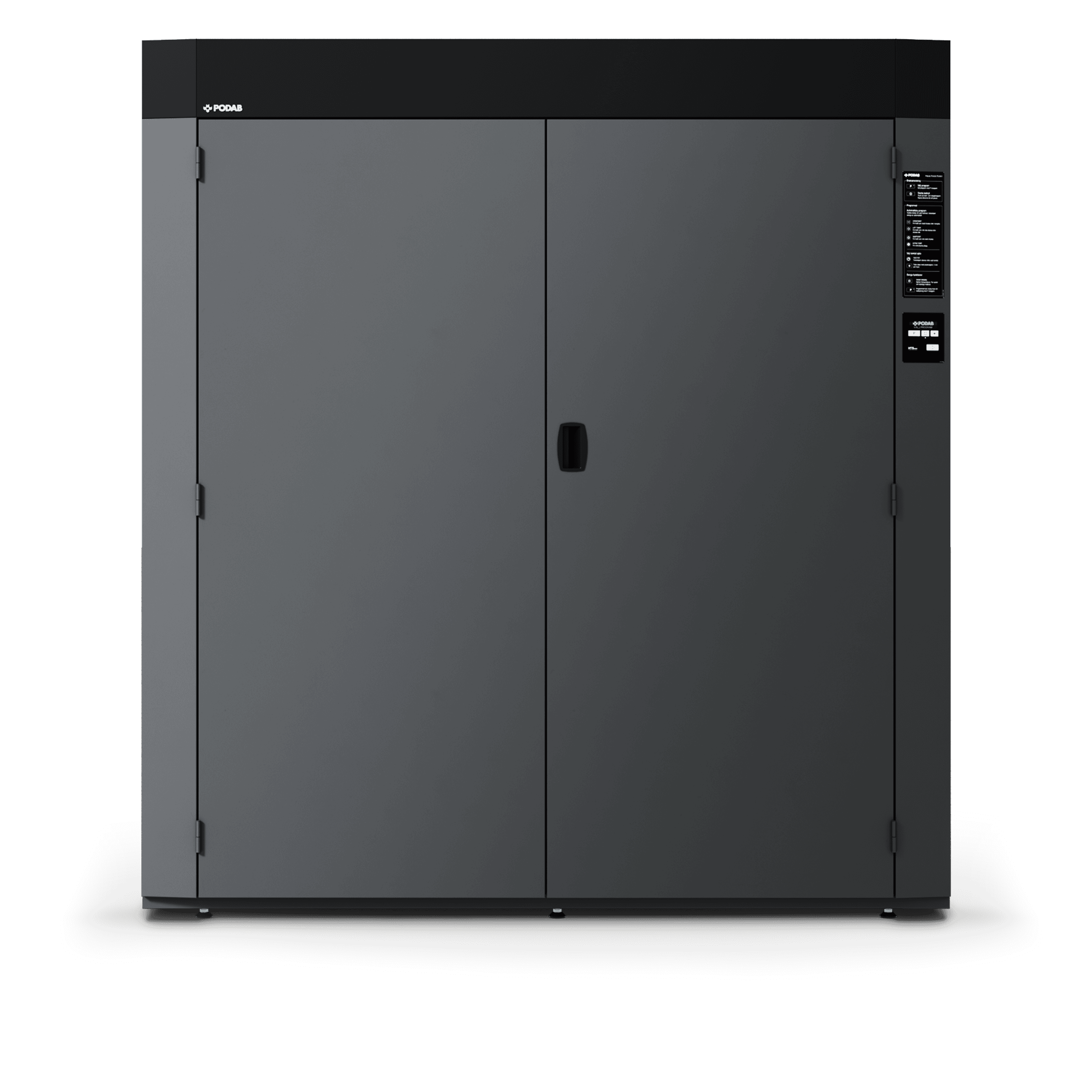

ProLine TS93 E

Name: ProLine TS93 E
Brand: PODAB International
Availability: OutOfStock

The ProLine drying cabinet series offer versatile, energy-efficient drying solutions for various industries. Designed to handle everything from workwear and uniforms to PPE, they provide gentle, effective drying without mechanical wear. Ideal for professional and industrial use, ensures fast, reliable results while preserving fabric quality.

The ProLine TS93 E drying cabinet offers cutting-edge efficiency and reliability for large-capacity industrial laundry needs. With unmatched capacity of up to 35 lbs / 16 kg and a unique 100 ft / 32 m hanging length, it provides exceptional flexibility for drying various garments and textiles. Its robust construction ensures longevity, making it ideal for commercial dry cleaners, hotels, shared laundry spaces, and industrial facilities.

location_onFind a store

Product number: 131034

Main data

Product type: Drying cabinet
Product name: ProLine TS93 E
Product no.: 131034
Warranty: Three-year limited
Type: Air vented
Hanging length, ft/m: 105/32
Capacity (dry weight), lb/kg: 35/16
Interior capacity, cu ft/l: 73,1/2070
Energy consumption, kWh: 6.4
Drying capacity, oz/min / g/min: 2.9/81
Noise emission, dB(A): 65
Prepared for payment system: Standard
Reversable swinging hanging rail system: Standard
Connection cable: Standard
Drying time (normal temperature), min: 64
Residual moisture before drying, %: 43
Residual moisture after drying, %: 0

Electrical Installation

Supply voltage, V: 3~N/400V/50Hz
Electric heating, W: 9000
Electric fan, W: 500
Total effect, W: 9500
Protection, A: 16

Specifications

Outer: WxDxH, in: 71x31.5x77
Outer: WxDxH, mm: 1800x800x1955
Shipping dimensions: WxDxH, in: 75x31x42
Shipping dimensions: WxDxH, mm: 1915x790x1060
Weight, lb: 518
Weight, kg: 235
Shipping weight, lb: 606
Shipping weight, kg: 275
Minimum ceiling height, in/mm: 67/2215
Doors open, °: 190

Ventilation

Outlet exhaust, Øin/mm: 2.36/160
Outlet airflow, cfm/m³/h: 177/300
Max pressure drop, psf/Pa: 4.4/210
Max airflow (at 0% pressure), cfm/m³/h: 324/550

Manuals

picture_as_pdf
User manual TS93 E
downloadDownload quick_reference_allPreview

Product sheet

picture_as_pdf
Product sheet ProLine drying cabinet TS93 E
downloadDownload quick_reference_allPreview

Key features

Capacity & design
- 35 lbs dry weight
- 73.1 cu ft interior
- 105 ft hanging length

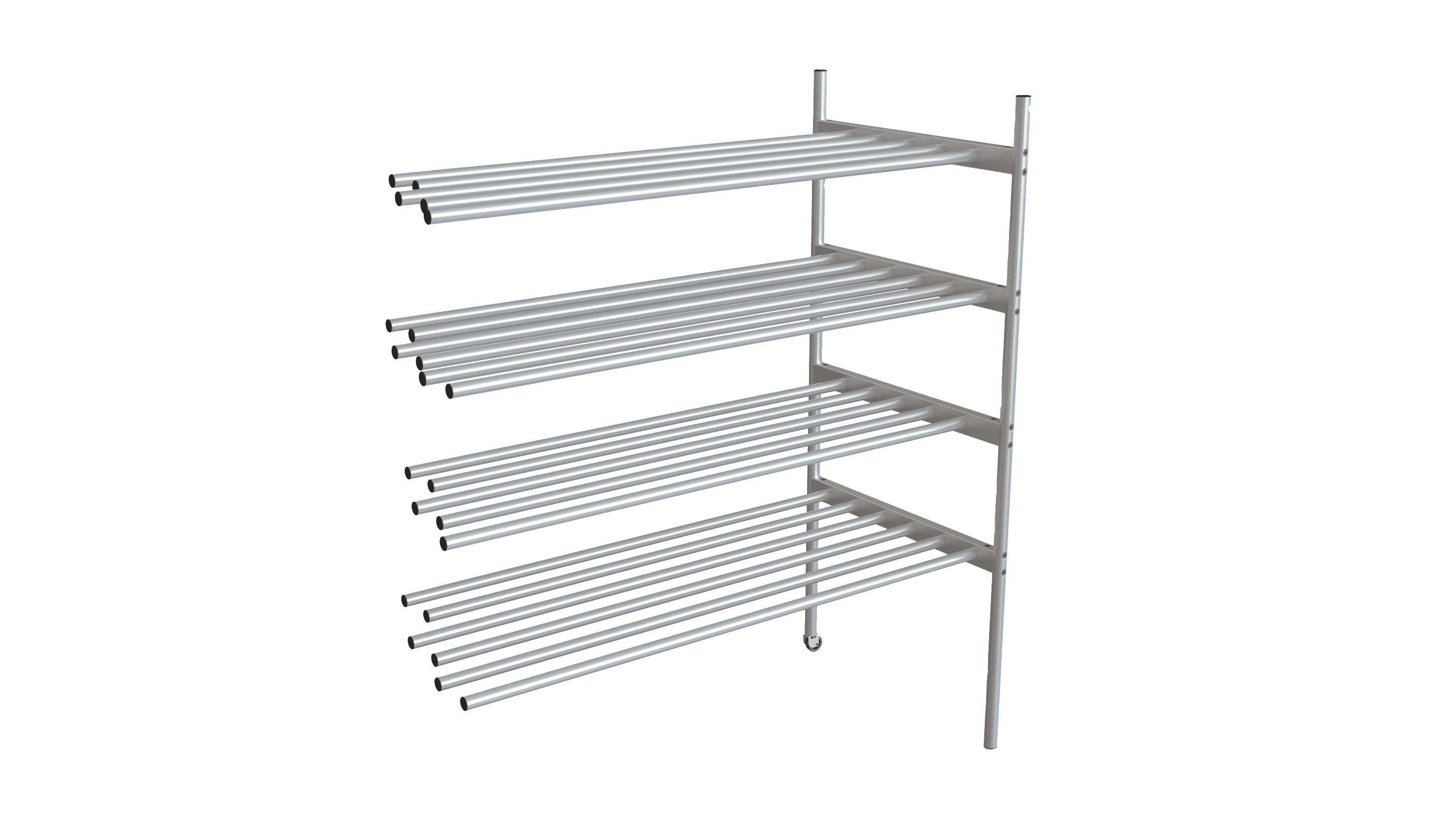

- Rotating hanging rail (90°) with doors opening 190°
Advanced drying system
- Automatic & manual programs
- Preset start time
- Temperature & humidity tracking
- Electric heated air drying
Efficiency & safety
- Energy-efficient
- Gentle drying without mechanical action
- Double overheat protection
- Cool down mode at program end
Durability & versatility
- Powder-coated galvanized steel
- Sturdy construction
- Interior lighting
- Adjustable feet
- Versatile drying options for delicate and hard-to-dry textiles

Unmatched capacity

Capable of handling up to 35 lbs / 16 kg of laundry per cycle, the ProLine TS93 E sets the benchmark for high-capacity drying cabinets. With its expansive interior and an impressive 100 ft / 32 m hanging length, it offers unmatched flexibility, making it ideal for efficiently drying a wide variety of garments and textiles. The ProLine TS93 E is the ultimate solution for all industrial drying requirements.

Sustainable and energy-saving laundry solutions

Despite its large capacity, the ProLine TS93 E is highly energy-efficient, using only 6.4 kWh per drying cycle. This helps lower energy costs and reduces its environmental impact, making it a sustainable choice for any laundry operation.

Robust construction

Engineered to endure the demands of frequent use, the ProLine TS93 E boasts a robust construction that guarantees reliability and longevity. Its durable design makes it perfect for commercial dry cleaners, hotels, shared laundry spaces, and industrial facilities where consistent performance and dependability are essential.

Equipped with a Humidity Tracking System (HTS), the ProLine TS93 E features sensors that monitor both temperature and humidity. It detects moisture levels and automatically stops the drying process once the laundry reaches optimal dryness, ensuring both time and energy efficiency.
