Drying cabinets

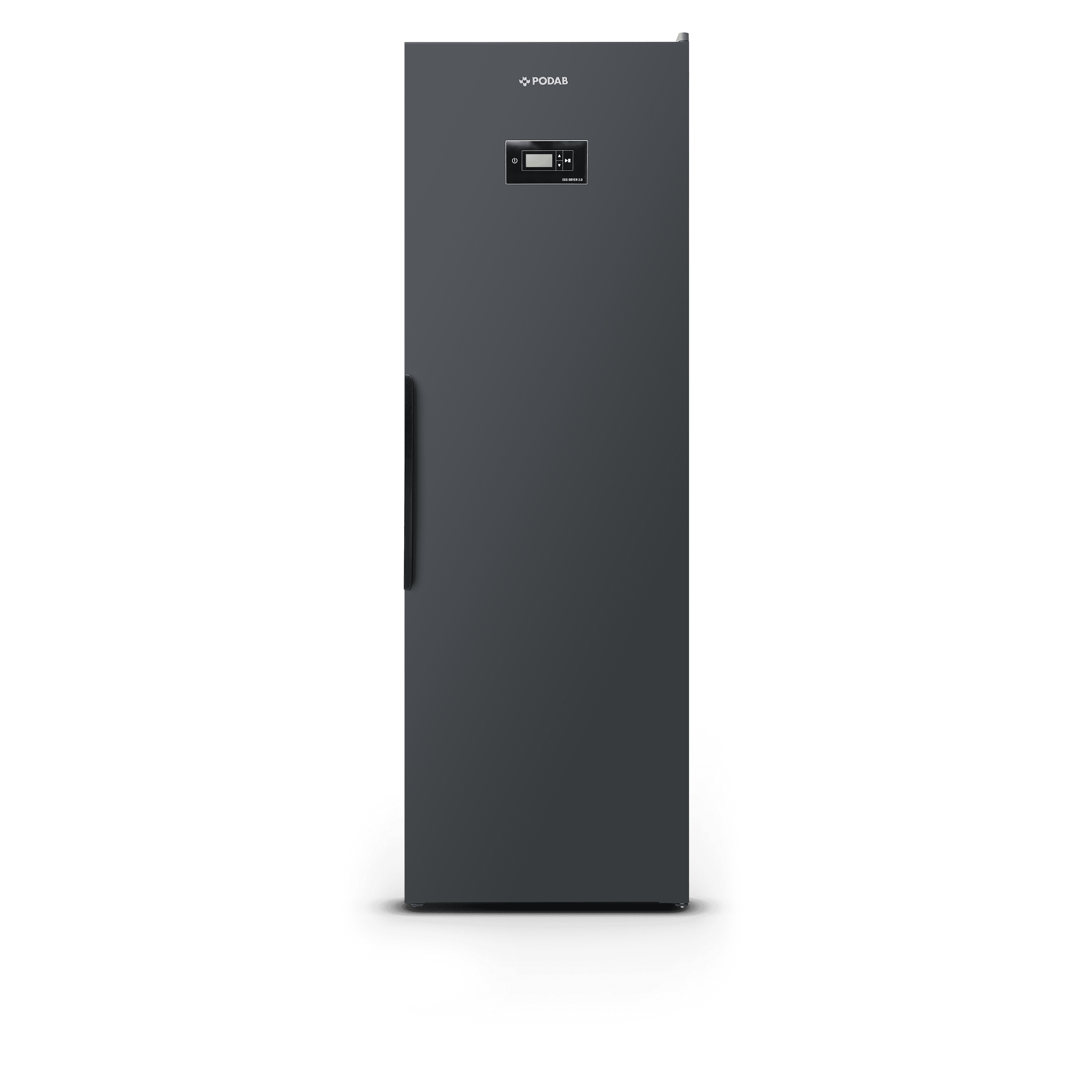

PrimeLine TS4 HP

Name: PrimeLine TS4 HP
Brand: PODAB International
Availability: OutOfStock

Small energy-efficient drying cabinet with a heat pump. Reliable and easy to fit in any laundry room, perfect for limited spaces.

PrimeLine TS4 HP is a drying cabinet with a heat pump, 60 cm wide, and can dry up to 4 kg of laundry. Its practical size makes it perfect for smaller spaces. The cabinet is equipped with a pull-out hanging system, making it easy to hang textiles.

location_onFind a reseller

Product number: 131040

Main data

Product type: Drying cabinet
Product name: PrimeLine TS4 HP
Product no.: 131040
Type: Heat pump
Hanging length, ft/m: 53/16
Capacity (dry weight), lb/kg: 8.8/4
Interior capacity, cu ft/l: 18.45/522
Language, #: 10
Programs, #: 6
Connection cable: Included
Door hanging: Right hanging

Electrical Installation

Supply voltage, V: 1~N/220-240V/50Hz
Electric heating, W: 900
Protection, A: 10
Cable length, in/mm: 98.4/2500

Specifications

Outer: WxDxH, in: 23.4 x 27 x 75.8
Outer: WxDxH, mm: 595 x 688 x 1925
Weight, lb: 207
Weight, kg: 94
Shipping weight, lb: 220
Shipping weight, kg: 100
Doors open, °: 180
Reversible door: Yes, possible

Ventilation

Outlet exhaust, Øin/mm: 3.93/100
Outlet airflow, cfm/m³/h: 55.9/95
Fan capacity, ft³/hour/m³/hour: 6356/180

Water connection

Drain pipe, outer Ø, in/mm: 0.511/13

Heat pump

Refrigerant, type: R407C
Refrigerant, oz/g: 10.58/300

Consumption (normal temp.)

Dry weight cotton, lb/kg: 8.8/4
Drying times, min: 90
Drying capacity, oz/min/g/min: 0.77/22
Energy consumption, kWh: 1.2
Rest humidity, before drying, %: 50

Manuals

picture_as_pdf
User and installation manual TS4 HP/VP
downloadDownload quick_reference_allPreview

Product Sheets

picture_as_pdf
PrimeLine TS4 HP/VP product sheet
downloadDownload quick_reference_allPreview

Key features

Capacity & design
- 13/8.8 lbs dry weight (E/HP)
- 18.45 cu ft interior
- 52.5 ft hanging length
- fits 2 complete PPE suits in a compact design
Advanced drying system
Retractable hanging system electric heated air drying, automatic & manual programs, and a temperature tracking system.
Efficiency & safety
Energy-efficient, overheat backup and cool down mode at program end.
Durability & versatility
Sturdy construction, versatile hanging options, and ideal for delicate and hard-to-dry textiles and accessories.

Seamless and simple operation

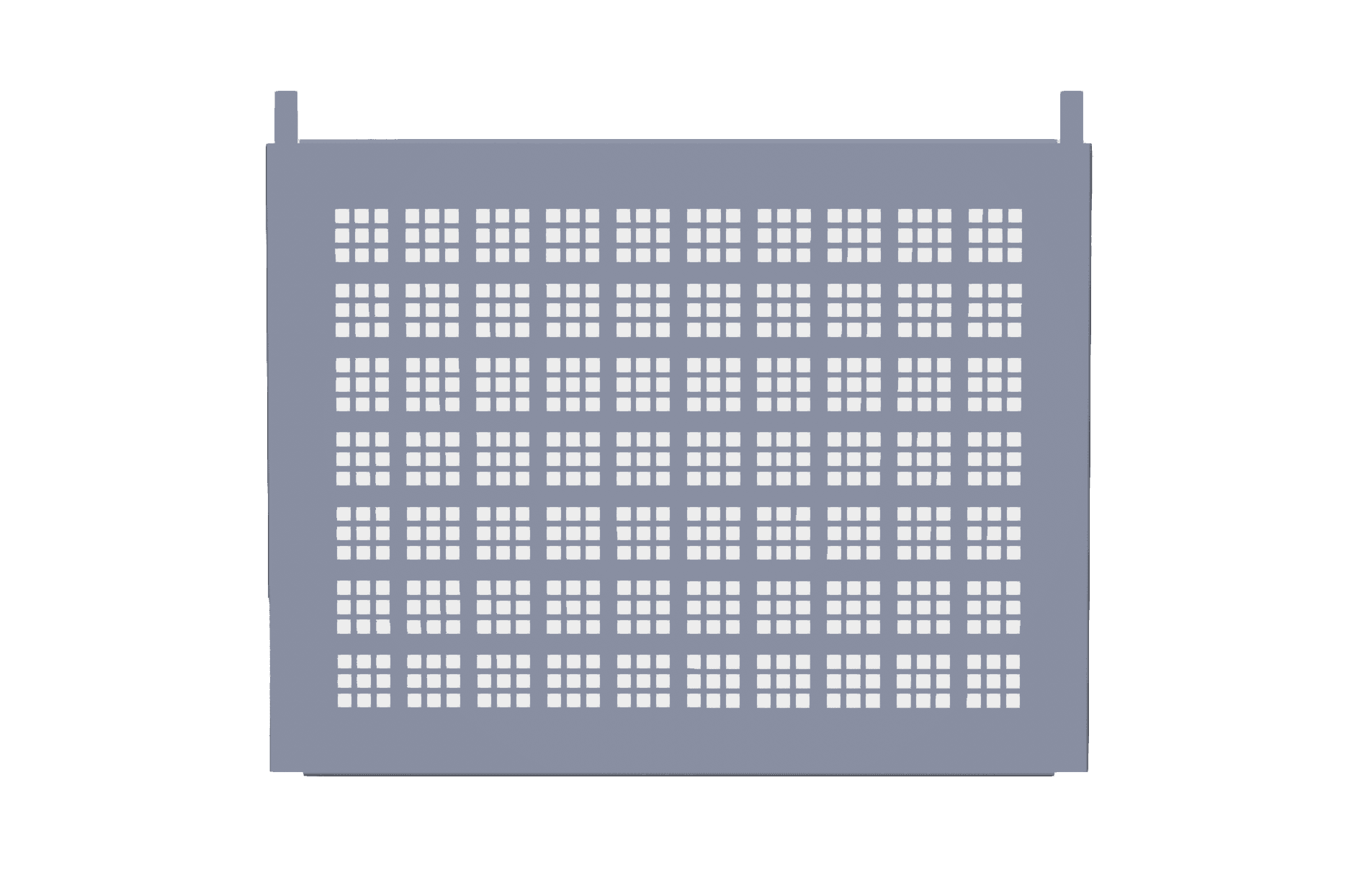

With a retractable hanging system, the TS43 E and TS4 HP simplify laundry operations, offering easy drying for various textiles. The customizable interior, featuring ventilated shelving designed for PPE, ensures efficient and safe drying.

Flexible drying capacity

Despite their compact size, the TS43 E and TS4 HP offer impressive capacity, holding up to 13.2 lbs (6 kg) of laundry or accommodating 2 sets of PPE. These drying cabinets are versatile and designed to meet a wide range of drying needs.

Perfect for smaller volunteer fire stations

Easy and hassle-free maintenance

The TS43 E and TS4 HP feature all controls and electrical components housed in a pull-out fan package, providing easy access for repairs and maintenance. This thoughtful design ensures a user-friendly approach to servicing, reducing downtime and maximizing productivity.
